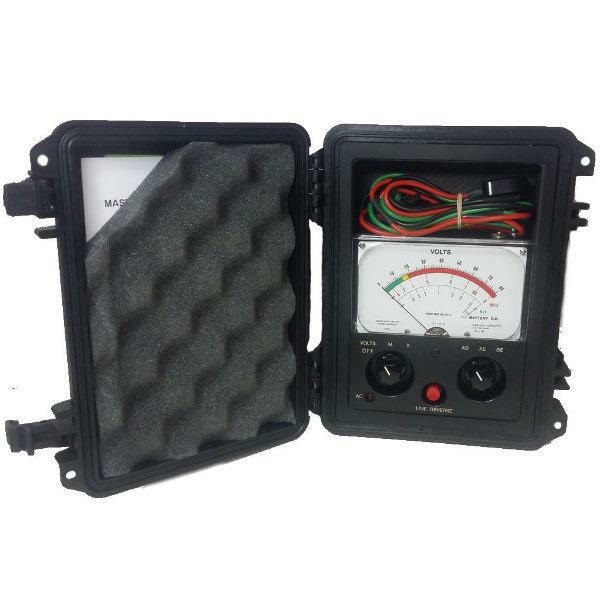

The Lines Test Set No 2 is a portable voltmeter/ohmeter used for testing telephone lines from terminal points such as cabinets, pillars, cable boxes, etc. The set is very user friendly, has a large scale for clear readings and is rugged enough to withstand operating conditions in the field. The set features volts, megaohms, k-ohms and low ohms, colour coded scale, AC detection, push button line reversal, rotary selector switches, multi flexible test leads, steel framed leather carry case and is built to Telstra and Australian standards (AS1042).

(LTS-2-NEW)

  • Movement: 100µA , DC Volts:
  • 0-80V 10000. per volt ±1%, Kilohms: 0 -
  • 5K. ±2%, Megaohms: 0 - 5M. ±2%,
  • Colour zone use with the megaohms scale -
  • Green = Good, Yellow = Fair, Red = Bad.
  • Temperature Range: Operating
  • 0 - 40°C, Storage 0 - 60°C, Standard 6F22DP
  • 9V battery powered.
  • SKU LTS-2-NEW
    Model # LTS-2
    Brand Master Instruments
    Shipping Weight 1.8200kg
    Shipping Width 0.210m
    Shipping Height 0.018m
    Shipping Length 0.120m
    12 Months Return to Base Warranty
