If you're bidding for FTTP or FTTC work, the fusion splicer in your kit decides whether a job passes first time or comes back as a truck roll. An NBN fusion splicer needs more than a spec sheet that looks fine on paper — alignment accuracy and splice consistency are what actually separate a clean job from a rework. This guide covers what affects splice quality on NBN and FTTx work, where an NBN fusion splicer earns its keep on site, and which models Contractor Essentials recommends depending on how much splicing you do.
Why NBN Fusion Splicer Quality Decides Whether the Job Gets Signed Off

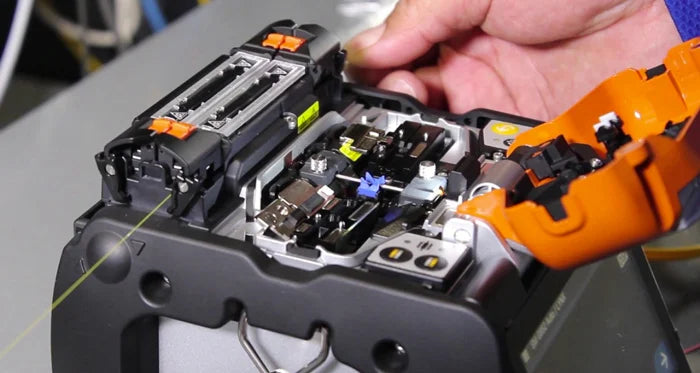

A fusion splicer joins two optical fibres by aligning their cores precisely, then fusing them with an electric arc. However, splicers that look similar on a spec sheet don't perform the same in the field. Core misalignment, even by a fraction of a micron, raises insertion loss and increases the risk of intermittent faults later.
That matters on NBN and FTTx work specifically, because splice quality is part of what gets tested against NBN Co's network design rules before a job is accepted. A splice that passes today but drifts out of tolerance later is a truck roll waiting to happen. Therefore, splicer quality isn't just a nice-to-have spec. It's what stands between a completed job and a comeback.
Active Core Alignment vs Fixed V-Groove: What the Difference Actually Means
Fusion splicers use one of two approaches to line up the fibre cores before fusing them.
Active core alignment systems use high-magnification imaging and motorised alignment to correct for core offset in real time. Because they adjust for imperfect fibre prep, they're more forgiving of a technician's cleave quality. As a result, they deliver lower, more consistent loss.
Fixed or active V-groove systems hold the fibres in a mechanical channel instead, and rely more on precise cleaving and preparation to get a clean splice. They're generally faster to learn and lower cost. However, they leave less margin for error if the fibre prep isn't spot on.
Neither approach is wrong. The right choice simply depends on splice volume, technician experience, and how much margin for error the job allows.
Where an NBN Fusion Splicer Is Used on Australian Sites
An NBN fusion splicer earns its place in a contractor's kit across several job types:
- FTTP installations and premises connections
- FTTC and FTTN remediation and fault repair
- MDU (multi-dwelling unit) fibre distribution
- General ISP and telco network extension work
- Emergency fault splicing and restoration
Because these jobs range from single-drop residential work to high-count MDU splicing, the right splicer depends heavily on job type. A fast single-fibre repair has different demands to a 24-fibre ribbon cabinet.
Checking Your NBN Fusion Splicer's Work Before You Sign Off: Example Procedure
The following is a general example only, and not a site-specific procedure. Always follow your employer's or network operator's documented test and acceptance requirements.
- Confirm the splicer's alignment calibration is current before starting.
- Inspect the cleave under magnification before splicing, not after.
- Check the splicer's estimated loss reading against your job's acceptance criteria.
- Verify with an OTDR or power meter reading where the job requires it.
- Re-splice rather than accept a marginal result close to the loss limit.
A splice that's technically within tolerance but close to the limit is often the one that fails months later.
Common Mistakes Contractors Make With Fusion Splicing
- Trusting the splicer's loss estimate without an independent check on critical links
- Skipping cleave inspection because "it looked fine"
- Using a general-purpose splicer for high-density ribbon work it isn't built for
- Letting field dust and moisture affect the splicer's optics without cleaning
- Ignoring calibration intervals until a job fails
Most of these come down to workflow, not equipment. However, the right splicer makes it harder to make these mistakes in the first place.
Choosing an NBN Fusion Splicer: What Contractor Essentials Stocks
Contractor Essentials stocks two fusion splicer families that suit different workloads.
The Sumitomo TYPE-72C+ High Definition Core Alignment Fusion Splicer uses active core alignment with high-magnification imaging, typically delivering single-mode splice loss around 0.01–0.02dB. It suits high-volume crews and MDU or backbone work, where consistency across many splices matters most. For ribbon cable work, the Sumitomo TYPE-72M12+ handles multi-fibre ribbon splicing in a single pass.
The Tumtec FST-83A Digital Core Alignment Fusion Splicer is a lower-cost active alignment option. It's well suited to FTTx drops, single-dwelling repairs, and contractors who splice regularly but not at high daily volume.
| Sumitomo TYPE-72C+ | Tumtec FST-83A | |
|---|---|---|
| Alignment | Active core alignment, high-magnification | Active core alignment |
| Typical single-mode loss | ~0.01–0.02dB | ~0.02dB |
| Best suited to | High-volume crews, MDU, backbone work | FTTx drops, repairs, general cabling |
See the full fusion splicer range for cleavers, accessories, and rental options.
Summary: Is an NBN Fusion Splicer Worth Upgrading?
An NBN fusion splicer is only as good as the alignment technology and workflow behind it. For high-volume or MDU work, active core alignment with high-magnification imaging earns its cost back in fewer re-splices and comebacks. For lower-volume drop and repair work, a value active-alignment splicer is often enough.
If you're specifying gear for NBN or FTTx work, start with your splice volume and job type, then match the splicer to it. Contractor Essentials stocks both tiers — get in touch if you need help matching a splicer to your workload.
