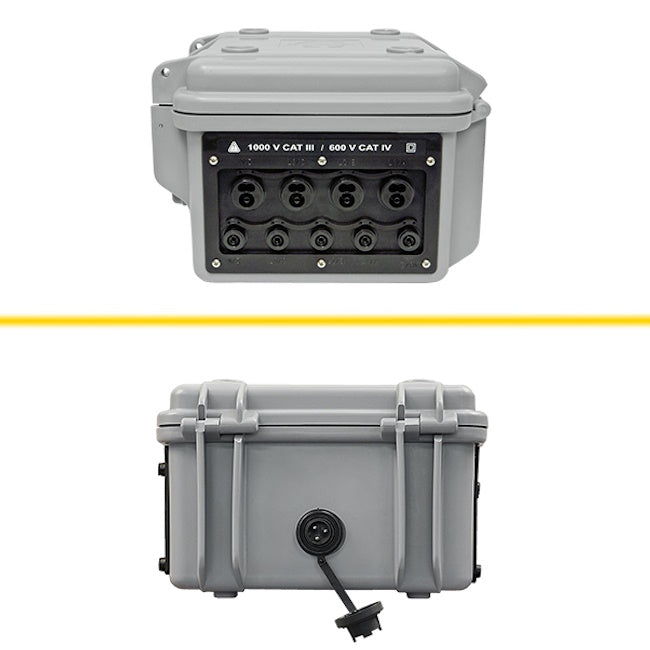

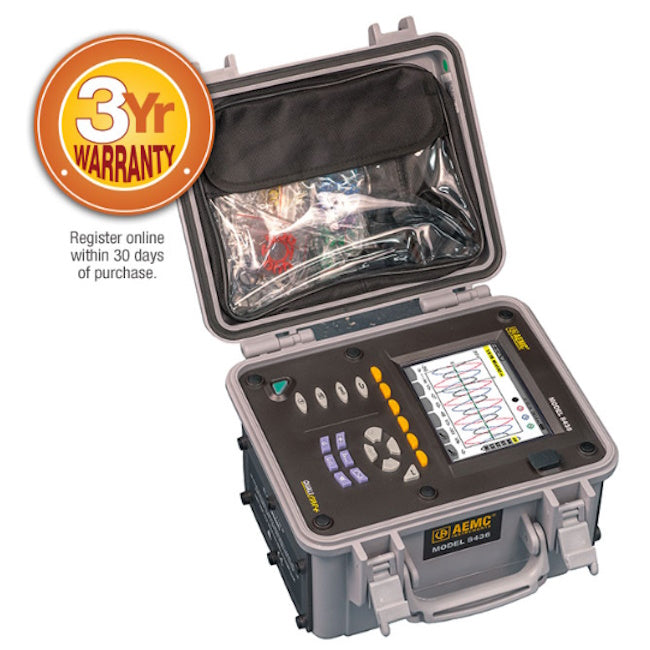

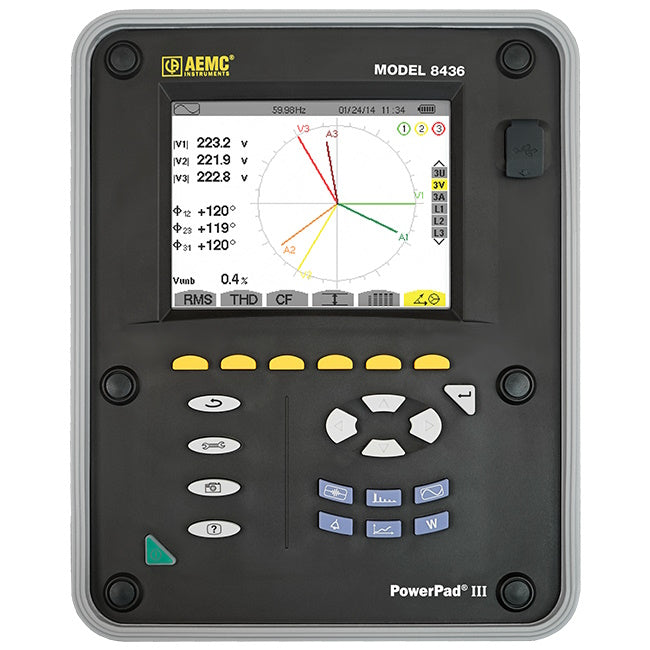

AEMC PowerPad 8436 w/4 196A-24-BK 3-Phase Power Quality Analyzer

The PowerPad® Model 8436 is a three-phase power quality analyzer that is easy to use, compact and shock resistant, for measurement, diagnostics and power quality work on single-, two- or three-phase networks. Five voltage and four current inputs are provided. It is IEC 61000-4-30 Class B, safety rated to 600 V CAT IV, and rated IP67 when used with the AmpFlex® 196A flexible sensor. It records 2 GB of trend data on a memory card, with internal memory for up to 50 screen snapshots, 210 captured transients and more than 16,000 alarm events from up to 40 parameters. Trend data can be recorded for days, weeks or months, and inrush current can be captured and stored. Supplied with 4 × AmpFlex® 196A-24-BK waterproof (IP67) sensors.
