Kaelus PIM Load

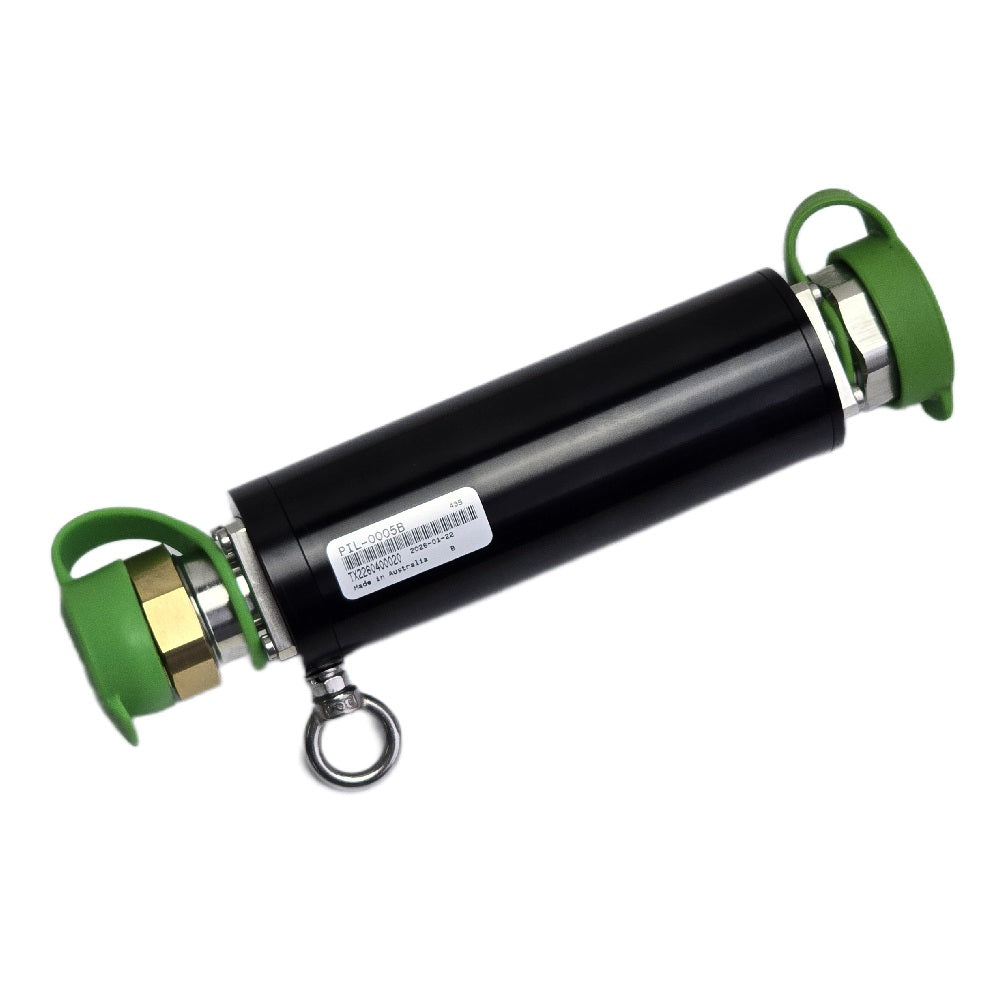

Kaelus PIL-0005 Passive Intermodulation Source
$1,146.00 exc. GST
$1,260.60 inc. GST
✓ In stock
✓ Pickup available from our Warehouse
Details
Kaelus PIL-0005 Passive Intermodulation Source
- Low Passive Intermodulation (PIM)
- Dual gender 7-16 DIN
- Consistent PIM level over wide frequency range
- Used for accurate PIM measurement
- Rugged and light weight design
- Reversible End Cap for personal protection
- Dust covers for prolonged life
- Coupling ring for lanyard attachment
- Frequency Range: 600 - 3500 MHz
- Impedance: 50 Ohms
- Return Loss: 16dB Minimum
- Passive intermodulation < -117dBm (2 x 43dBm carriers - Pulsed Power)*
The PIL-0005 can be used with our iPA D-series. It can handle 2 x 40W pulsed carriers with 10% duty cycle. - RF Power Rating: 10W average*
- Connector: Dual Gender 7-16 DIN Female and 7-16 DIN Male
- Mating torque: 25 Nm with wrench supporting connector flange
