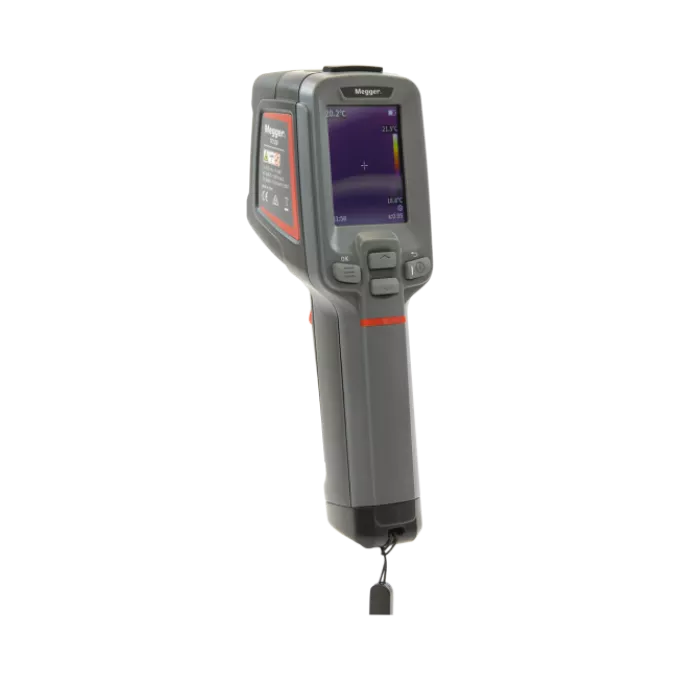

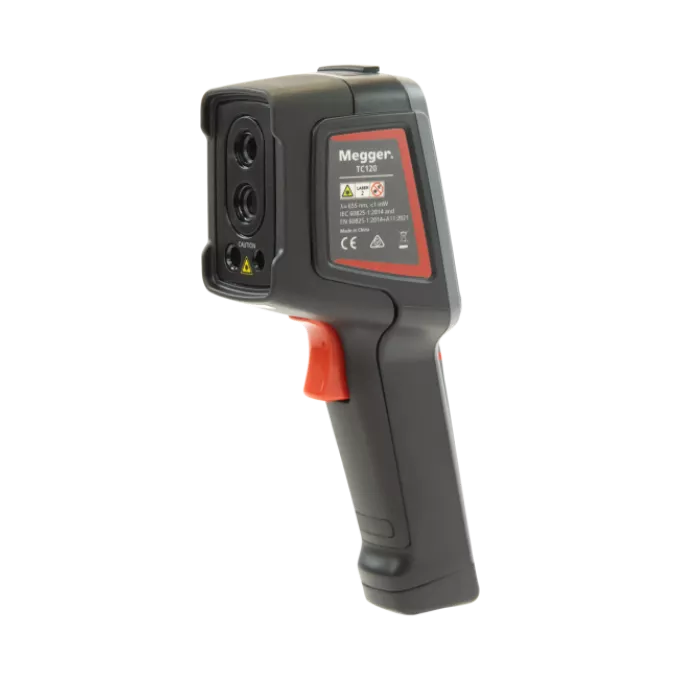

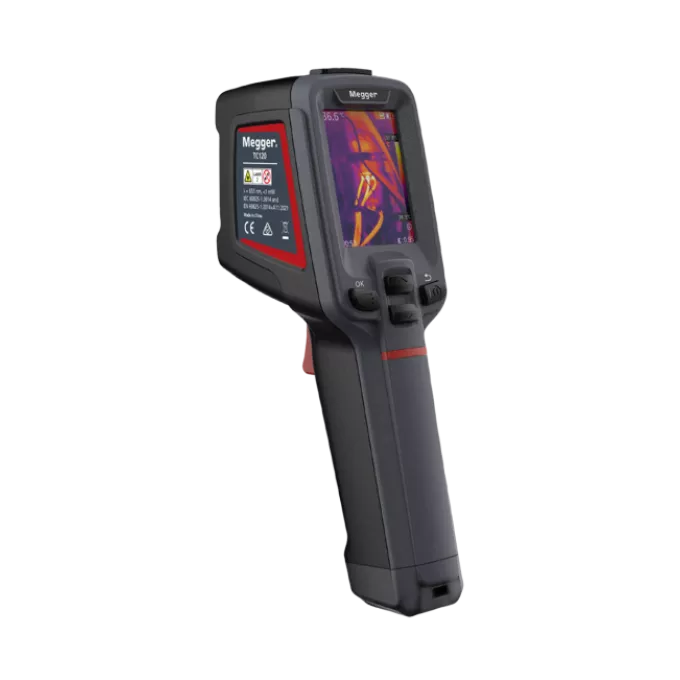

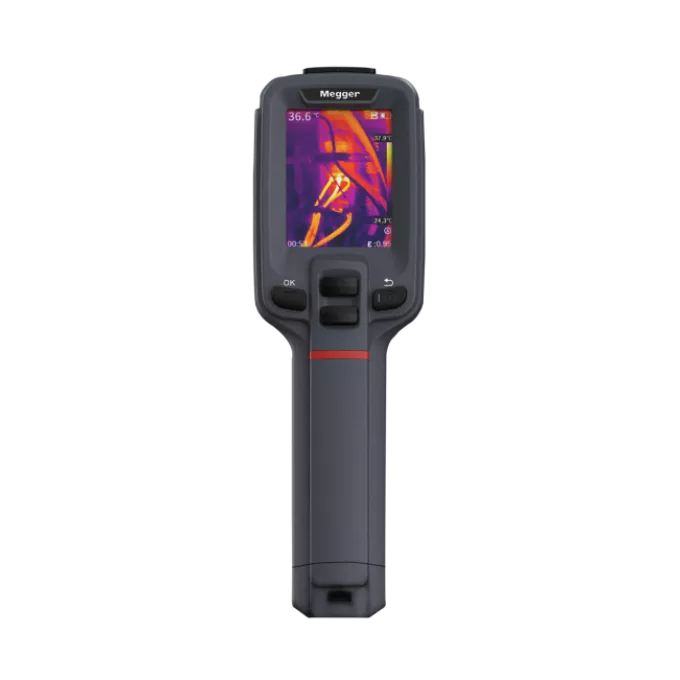

Megger TC120 Thermal Imaging Camera

With a resolution of 120 × 90 pixels, it delivers clear thermal images that make it easy to identify hot spots, insulation issues, and equipment irregularities before they turn into costly failures. It also comes with super resolution to 240 x 180 pixels to further enhance the images for even better pinpointing.

Built for Everyday Use

The TC120 is engineered to be simple to use straight out of the box. Its intuitive controls, ergonomic design, and compact size make it suitable for technicians and electricians working in the field. The integrated laser pointer and floodlight improve targeting and visibility in low-light environments, ensuring accurate measurements even in challenging conditions.

Multiple Imaging Modes

To support different inspection needs, the TC120 provides several image modes, including:

• Infrared (IR) – captures heat signatures for precise temperature detection.
• Visible light (VL) – displays standard images for easy reference.
• Picture-in-picture (PIP) – overlays infrared data on visible images for context.
• Multimodal image fusion (MIF) – combines thermal and visible light images for accurate fault location.

Connectivity and Reporting

The TC120 connects directly to a PC via USB for data transfer and image analysis. Reports can be generated quickly, helping teams document inspections and share results. With rechargeable battery power and efficient energy use, the camera supports extended use in the field without interruption.

Safe, Reliable Performance

Designed with durability in mind, the TC120 withstands the rigours of field environments. It comes with a protective carrying case, wrist strap, and charger as standard. Calibration is recommended annually to maintain measurement accuracy, ensuring the device continues to provide dependable results throughout its service life.
