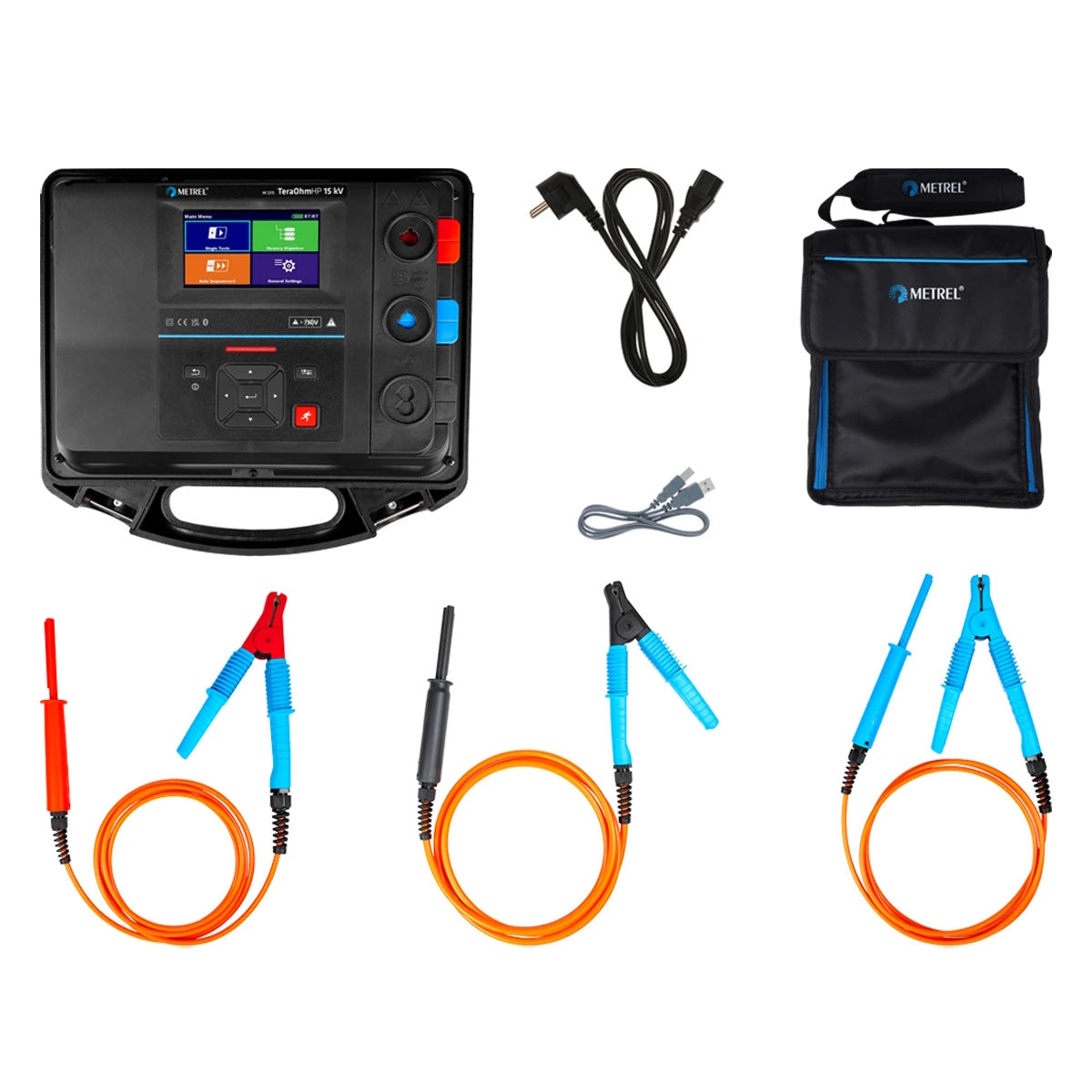

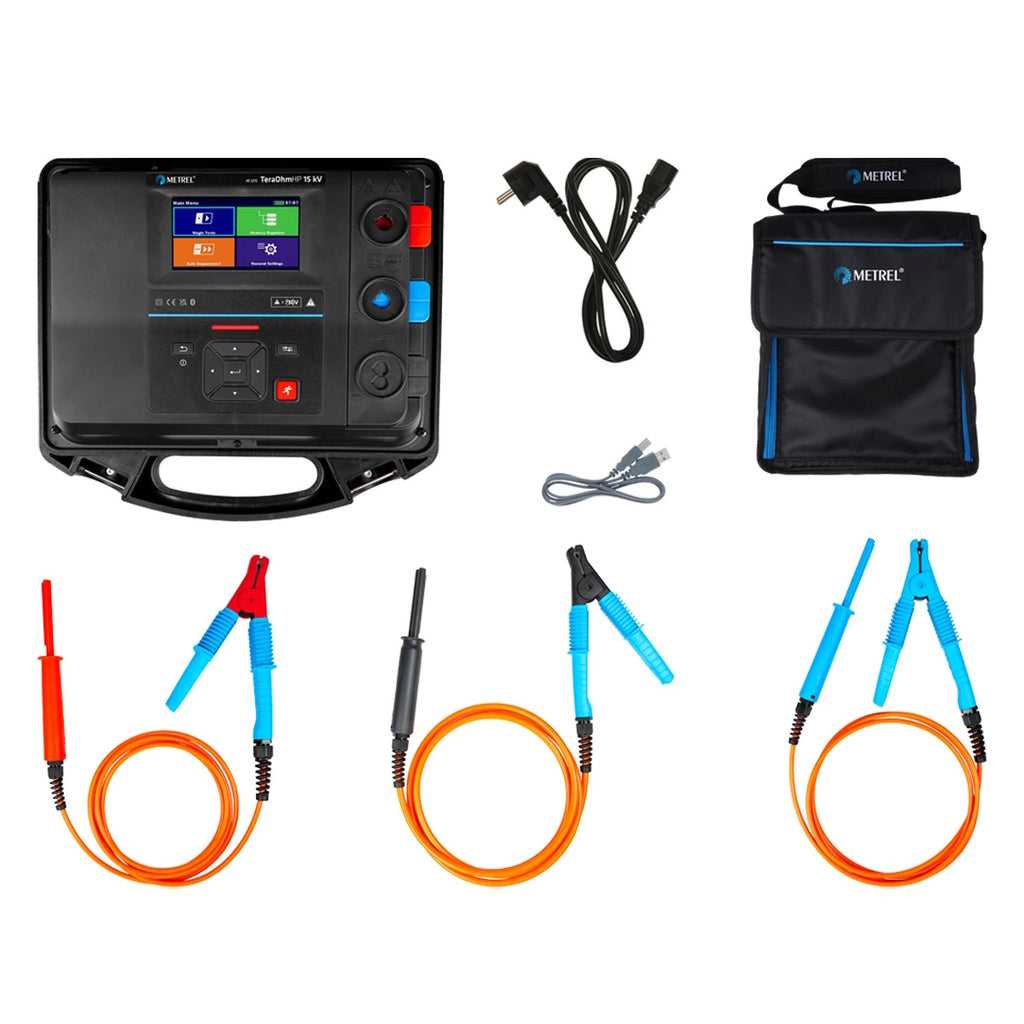

Metrel MI-3215 TeraOhm-HP 15 kV Insulation Tester

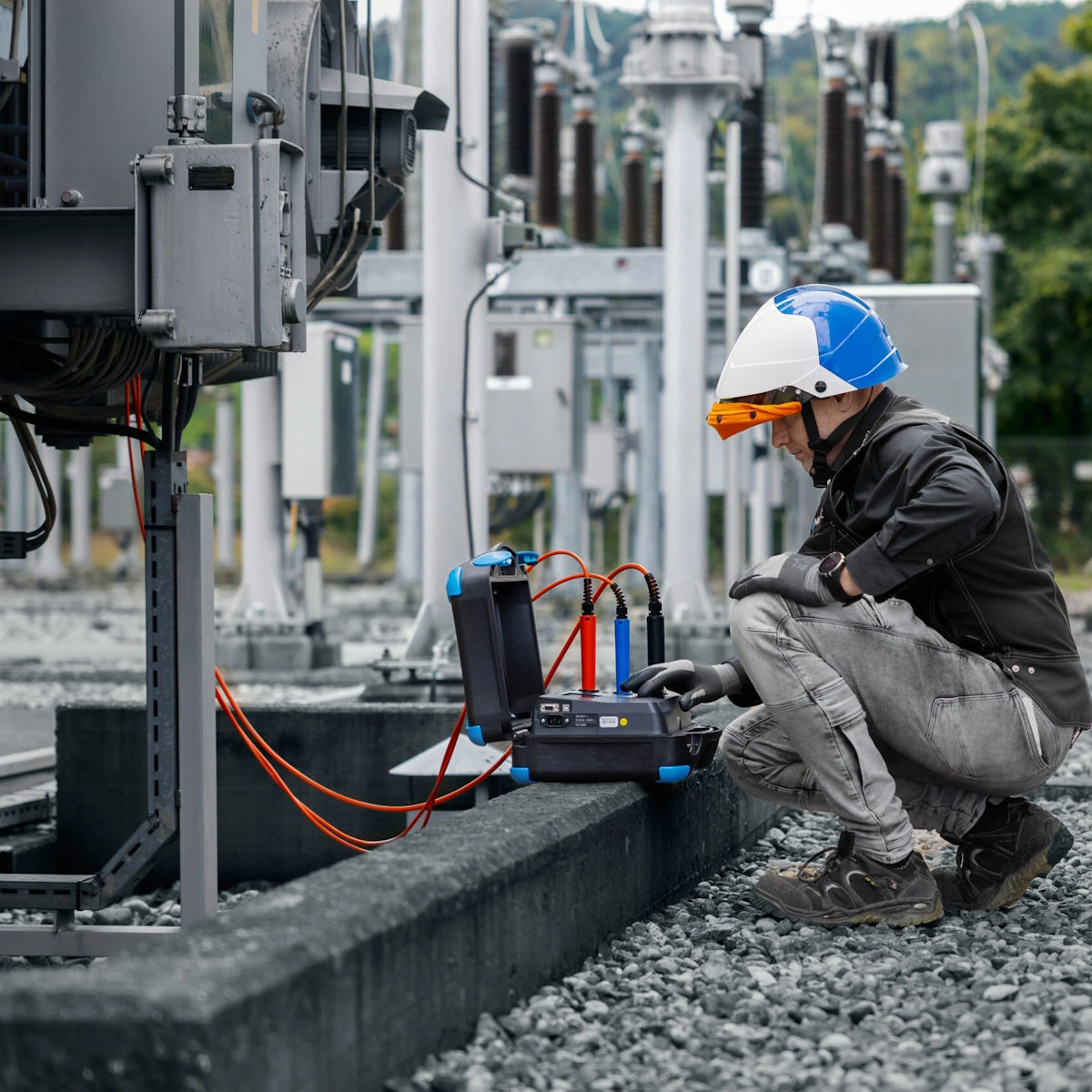

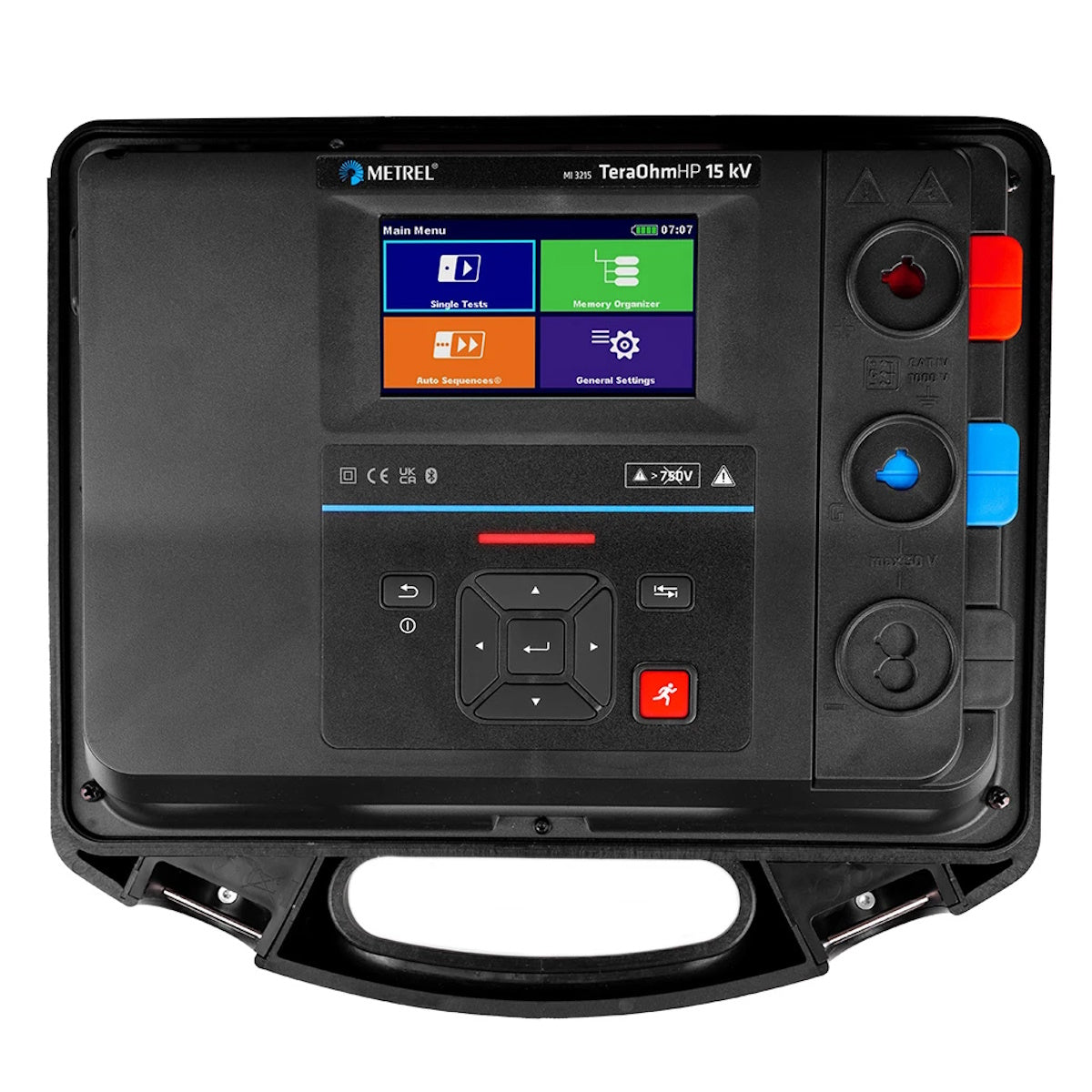

Because of its robustness (CAT IV measuring category) and high immunity to radiated EM fields, it is best suited for demanding industrial environments. Touch screen or key manipulation via menu-driven LCD enables easy and transparent selection of different measurement methods and easy entry of data. Newly designed test leads have coded banana connectors for proper connection and locking to protect them against unwanted or accidental removal. Breakdown or Burn Mode for testing and fault finding.

Measuring functions:

• Insulation resistance measurement
• Diagnostic test (PI, DAR, DD)
• Breakdown or Burn mode
• Step voltage test
• Withstanding voltage test (DC) up to 15 kV
• Voltage and frequency measurement up to 999 V TRMS
• Capacitance measurements

Features:

• Insulation resistance measurements of up to 35 TΩ.
• Safety rated category up to CAT IV 1000 V to 3000 m.

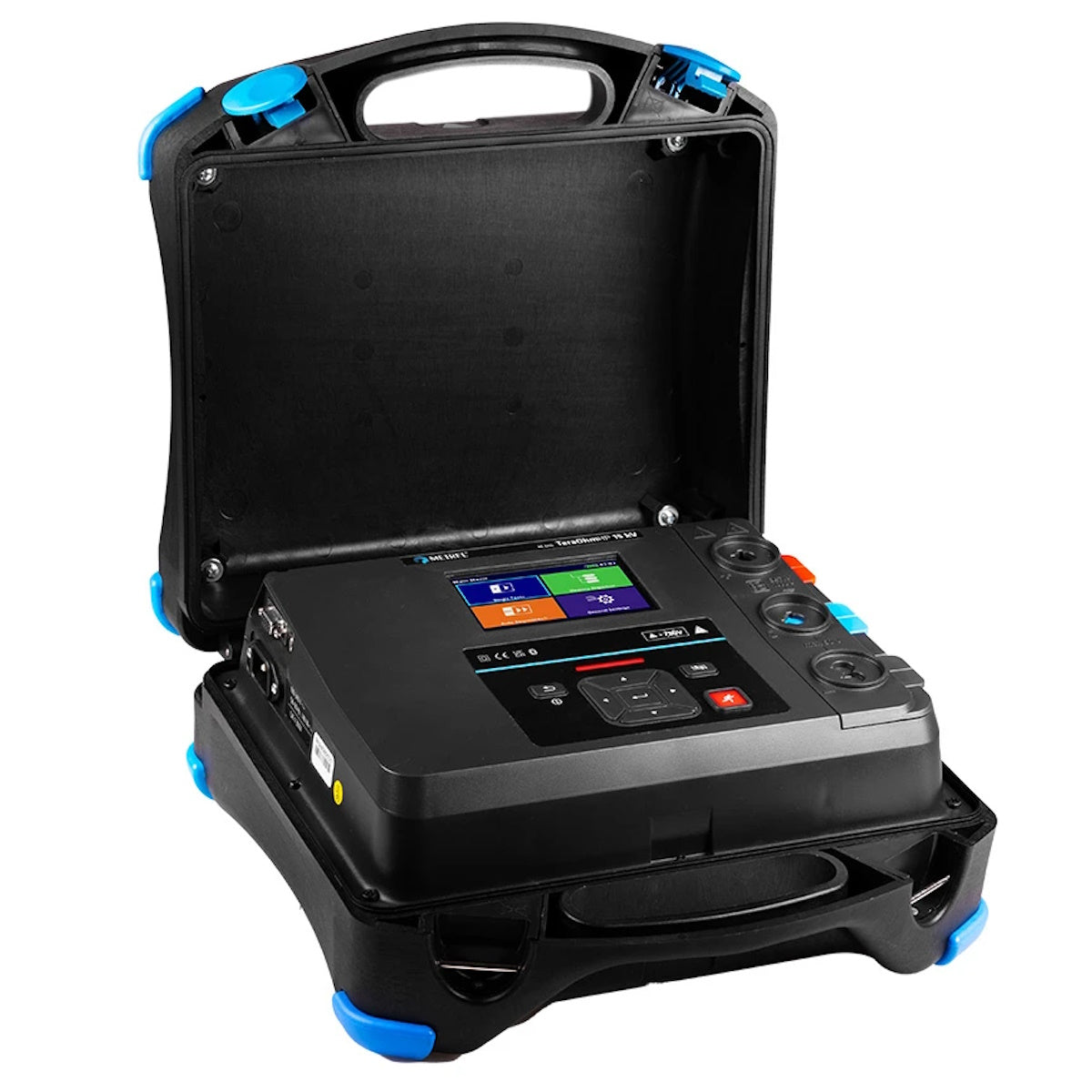

• Dual-case design.

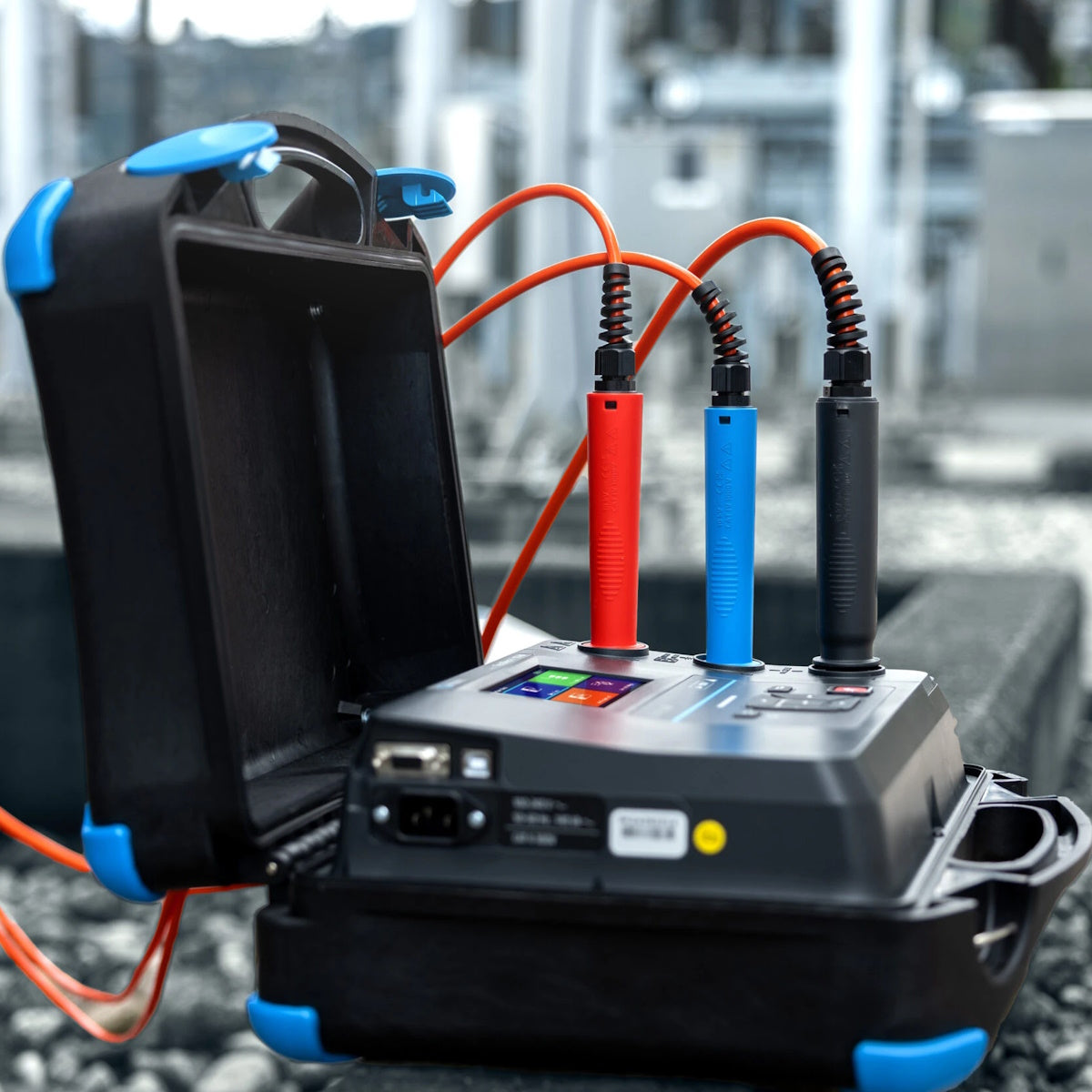

• Coded banana connectors with locking feature.
• Newly designed HV crocodiles with a better grip.
• Li-ion battery 4400 mAh.
• Adjustable test voltage (50 V…15 kV) in 50 V and 100 V steps.
• Maximum short circuit/charge current: >4 mA (mains supply) or >2.4 mA (battery supply).
• Charging rate for capacitive load <4 s/μF at 15 kV.
• Discharging rate for capacitive load <1.6 s/μF at 15 kV (mains supply).
• 8 GB memory SD card for data saving.
• Burn or breakdown mode.
• Programmable timers.
• Automatic discharge of test object after finished measurement.
• Live voltage detection > 30 V
• IP65 case rating.
• User-friendly and intuitive operation.
• High voltage breakdown detection.
• Programmable AUTO SEQUENCEs.
• Auto adjustment function.
• Measurement results in numerical and graphical form.
• PC software MESM for downloading and analysing test results and for test report printing.
• Isolated RS-232 and USB communication ports, Bluetooth interface.
• High quality accessories, including shielded test leads.
• High EM interferences protection: Input AC current noise rejection 8 mA, input AC voltage noise rejection 1.5 kV
• Averaging of results (5, 10, 30, 60).
• Mains and rechargeable battery power supply.
