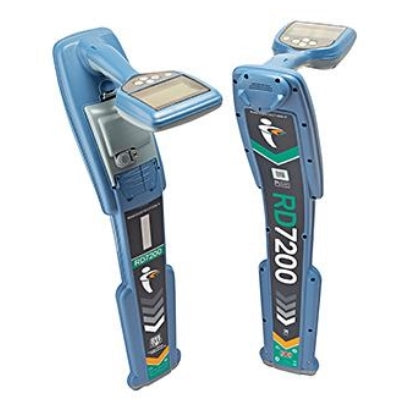

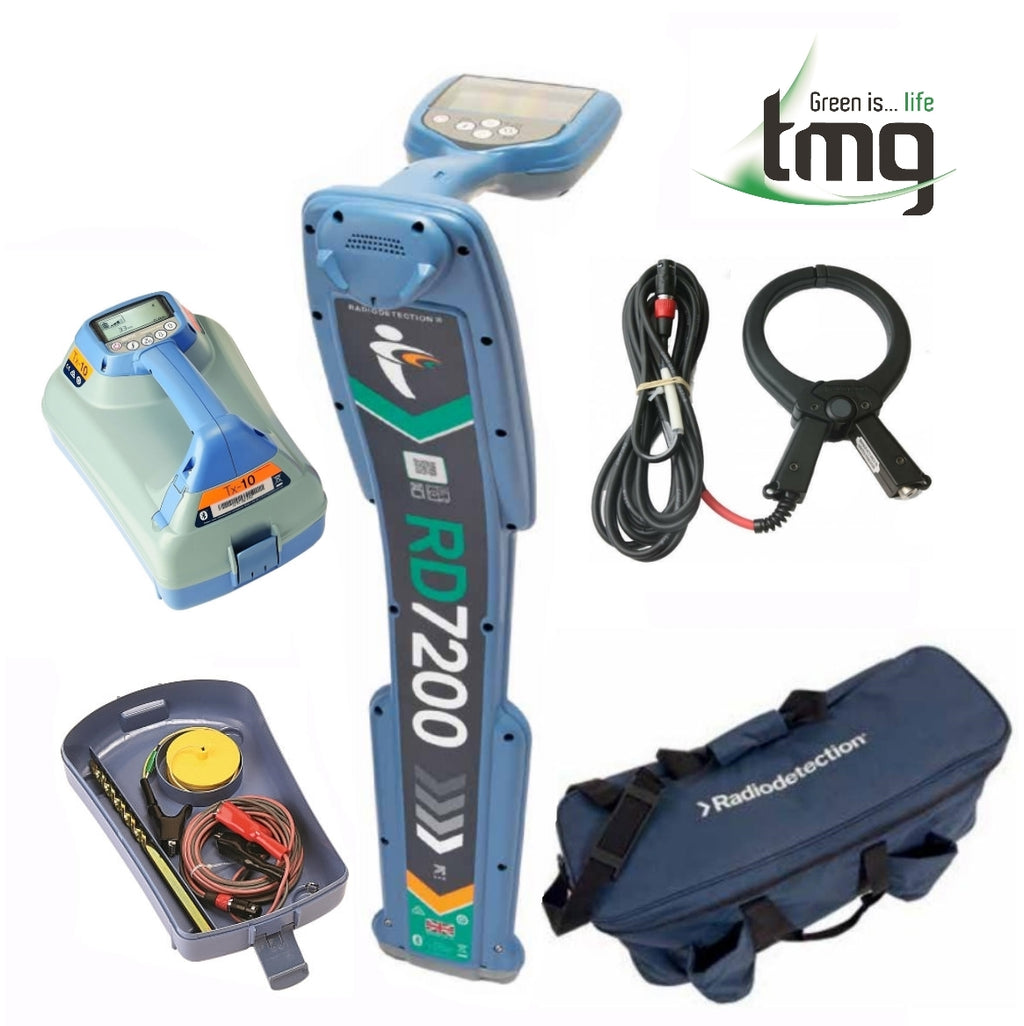

Radiodetection RD7200 Precision Cable & Pipe Locator

RD7200 locators: Take the next step in locating buried infrastructure

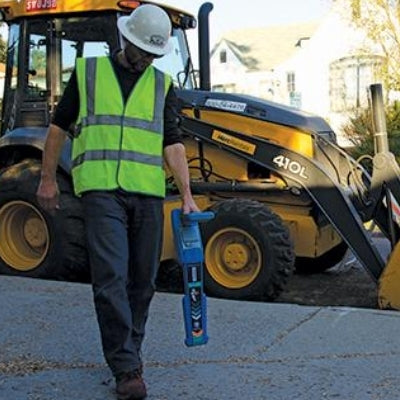

Locating and protecting buried infrastructure is a key operation for many industries. Locator technicians need reliable equipment that can be used all day, every day in tough environments. They demand tools that can deliver efficient operations, high levels of safety and precise and accurate measurements.

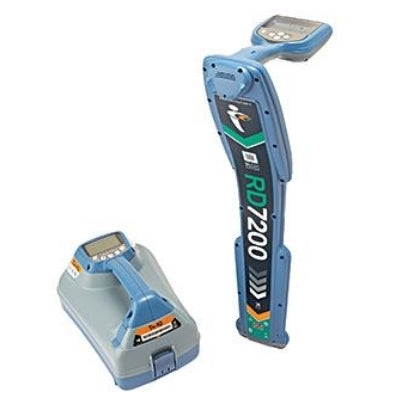

Designed with operators in mind, the new RD7200 and their transmitters are our most advanced cable range of precision locators yet. Created and built in the UK, they are subjected to a rigorous test regime and quality checks before leaving our factory, continuing our long tradition of high quality and reliability.

The RD7200 offer a set of new features to improve operational efficiency and adherence to best practice.

Swing Warning System to drive correct usage:

Locators must be kept perpendicular to the ground for best accuracy. The RD7200 have a built-in gyroscopic measurement system, which alerts the user of excessive swing, driving correct usage.

High performance audio system to allow operations in noisy environments:

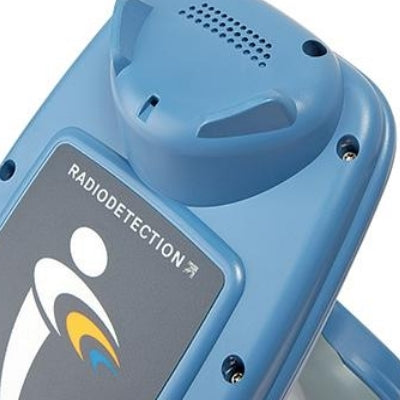

The new locators have a new waterproof speaker housing, positioned to provide maximum feedback to the operator and tuned for optimum resonance for the frequency tones chosen. Five power output levels assist technicians working in challenging environments.

Vibration feedback system to reduce the chance of missed warnings:

The locator handle vibrates when alerts activate, leaving the operator to concentrate on the job at hand.

The RD7200 Receivers are backed by a three-year warranty when you register your unit online.

RD7200 Specific Information:

• Simultaneous display of depth and current
• Compass, active modes and passive modes (User Configurable
• Dynamic Overload Protector
• Power (50/60 Hz selectable) broad band, selective harmonics
• Power, Power Filters, Radio, CPS (100/120Hz, no more CATV mode
• Depth in Power Mode
• Swing Measurements / Warnings, Haptic Feedback
• Sounds 3db higher than other locators, High Pitch option for noisy environments, Speaker in back
• RD Manager Online (RDMO) Support PC software
• Improved Battery Monitoring when using ALK, NIMH, LIION. (NIMH, LIION OPTINAL)
• Peak, Null, Peak-Plus, Guidance Mode
• All Sonde Frequencies (512Hz, 640Hz, 8kHz, 33kHz)
• Locator Frequencies (512Hz, 640Hz, 8kHz, 33kHz. 65kHz, 83kHz, 131kHz, 200kHz)
• Fault Finding Mode 8kHz
• USB Type C
• eCERT over USB
• Self-Test
• 3 Year Warranty when you register your Receiver Wand with Radiodetection.
• 1 Year Warranty for the Transmitter Box.
