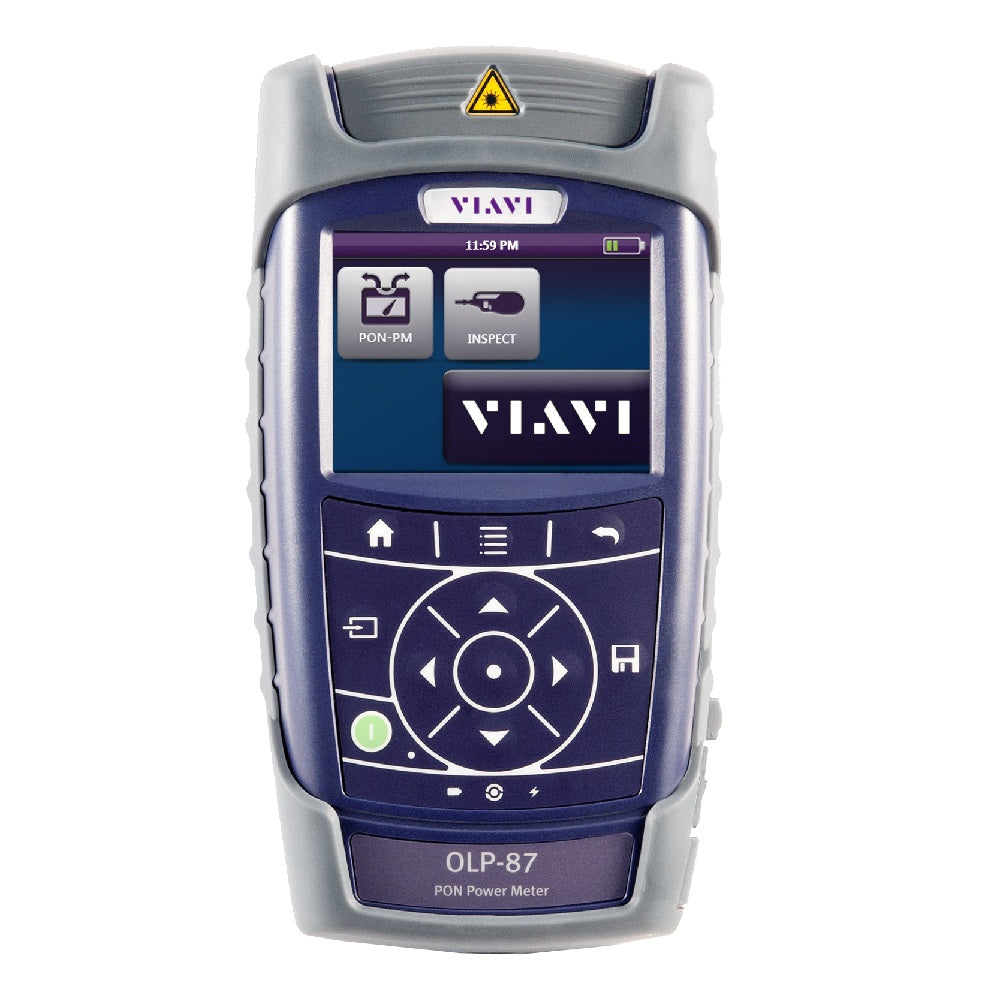

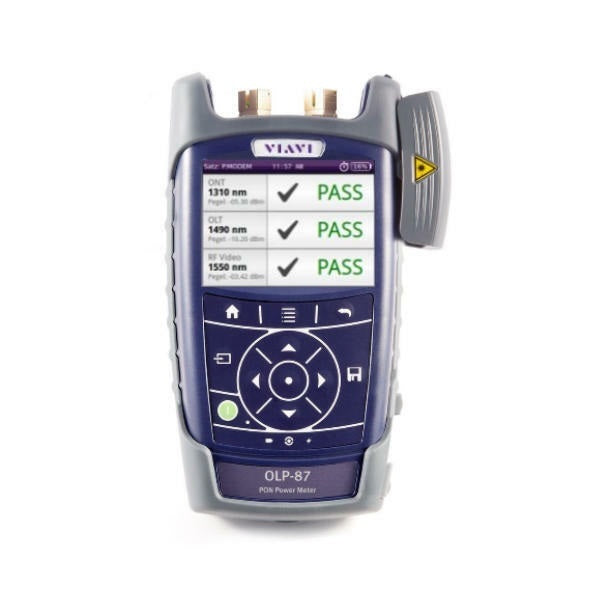

VIAVI OLP-87 NBN FTTc PON Power Meter

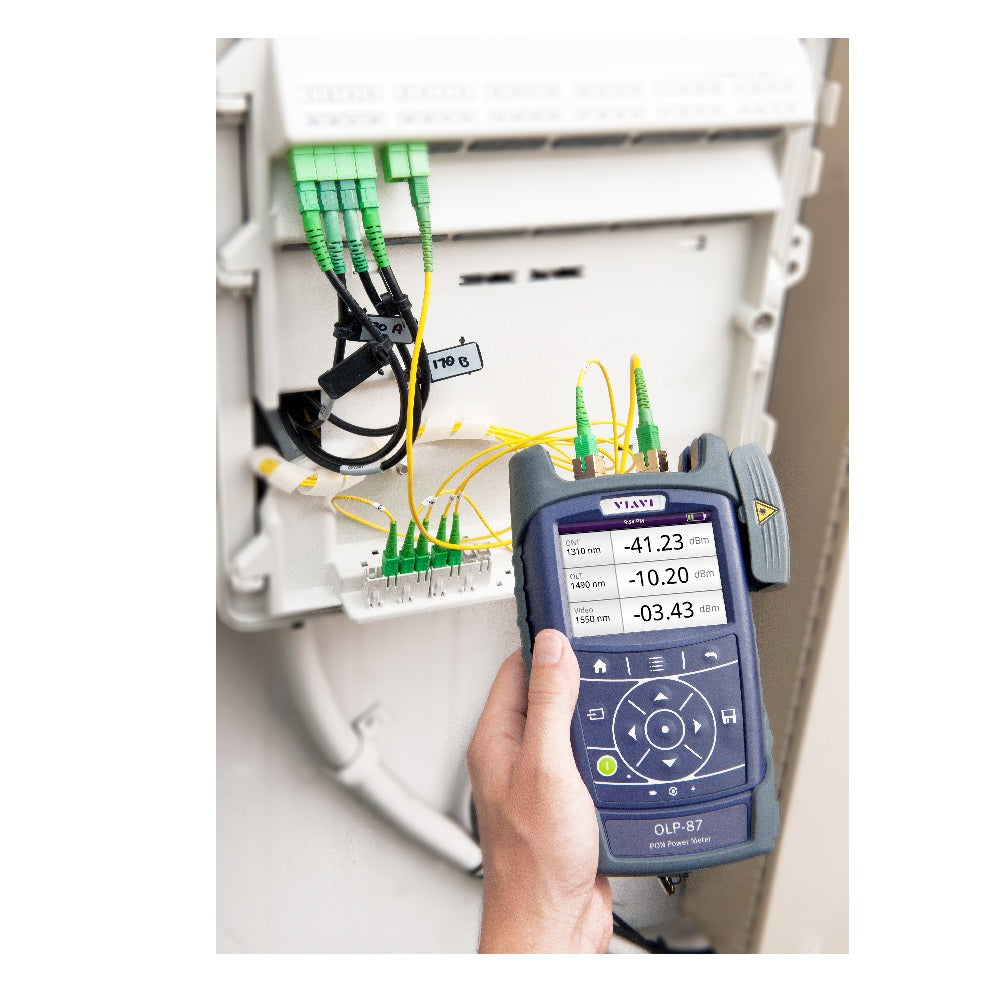

The OLP-87 is ideal for end-of-line testing, activation, and maintenance of all FTTx/PON signals. The through-mode capability can simultaneously measure voice, data, and RF video signals on fiber at 1490/1550/1577 nm downstream and 1270 or 1310 nm burst mode upstream. The OLP-87 is compatible with the P5000i digital analysis microscope so users can check fiber end-face quality and get pass/ fail acceptance results with one button push. The OLP-87P features an integrated patch-cord microscope (PCM) for added value and improved workflow efficiency. Users can easily save test results and generate certification reports to document work quality. Integrating these capabilities into one system drives technician behavior toward implementing today’s best practices in a seamless workflow that optimizes efficiency and reliability so they complete the job right—the first time.

Key Features of the OLP-87 PON Power Meter:

• Through-mode capability for simultaneous measurement  and display of voice, data and RF video signals on fiber at 1490/1550/1577nm downstream and 1270nm/1310nm upstream for B/E/G/XG(S)/10G
• Individual, wavelength selective, through mode power level measurement for multiple NG-PON2 downstream and upstream channels
• Burst mode measurement for 1270nm, 1310nm and 1535nm upstream signals
• High performance broadband power-meter option
• Up to 10.000 measurement results storage downloadable through USB or Ethernet interfaces
• Automated pass/fail fiber inspection analysis with optional P5000i microscope Integrated patchcord microscope version available
