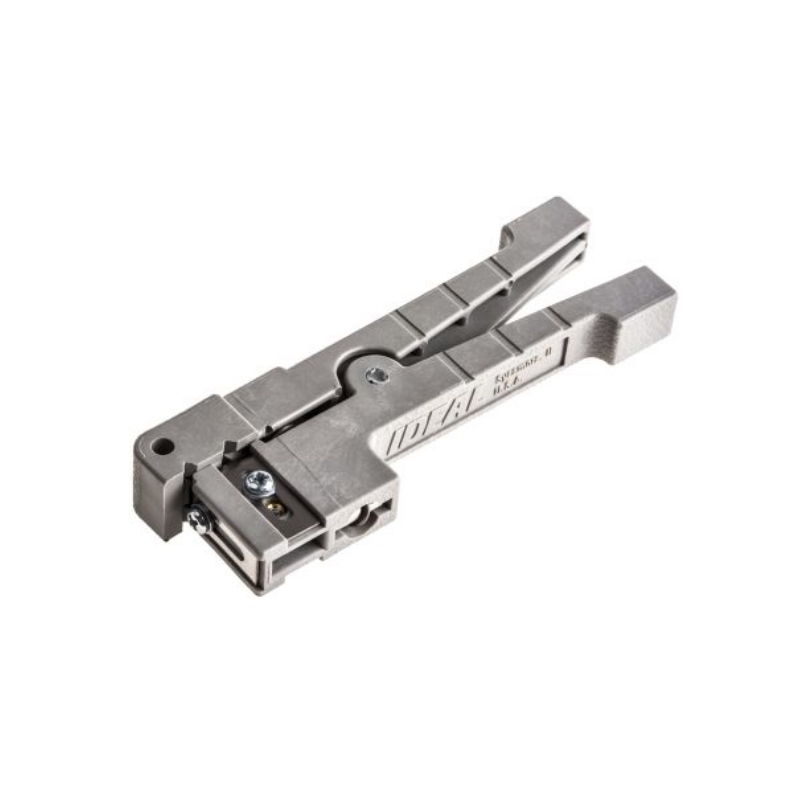

GRAY ADJUSTABLE BLADE RINGER™

  • Strips round cable jackets and inner conductors up to .125”/3.2mm in diameter
  • Adjustable blade depth settings allow for a precise strip for multiple cable types and sizes
  • .240”/6.1mm blade spacing for 2 step or window strips
  • Rounded edge slitting blade included
  • Replacement blades are available



Overview



Versatile stripping tool allows for jacket and conductor stripping for many types of small diameter round cable, including fiber, coaxial, and basic insulated conductors.  This is a compact and lightweight prep tool that works well for specialty cable preparation where traditional fixed blade stripping tools just don’t work as needed for the application.

The 45-162 includes three separate active cutting blades which are all able to be adjusted to the proper cutting depth via a Phillips screw setting for each blade.  Blades can be individually set to score the jacket so the inner conductors or shielding do not get damaged.

The tool can be used for jacket stripping or scoring, including midspan access stripping, 2 step conductor preparation by having the .240” spaced side blades cut to different depths – one for jacket removal, the other for dielectric removal/conductor exposure.  The front blade can be used to slit a jacket end or complete a midspan cut.

The Gray Adjustable Ringer™ handles cable diameters up to .125”/3.2mm.  Other Adjustable Ringers are available to handle larger cables up to 9/16” diameter.
Replacement blades are available for the Ringer product series.

(IDE45-162)

Multi-Cable Adjustable Ringer Round Cable Stripper/Slitter
This product will be free from defects in material and manufacture for a period of 3 Months from the date of purchase.
SKU IDE45-162
Model # 45-162
Barcode # 783250451623
Brand Ideal
Shipping Weight 0.0100kg
Shipping Width 0.080m
Shipping Length 0.220m
3 Months Return to Base Warranty
