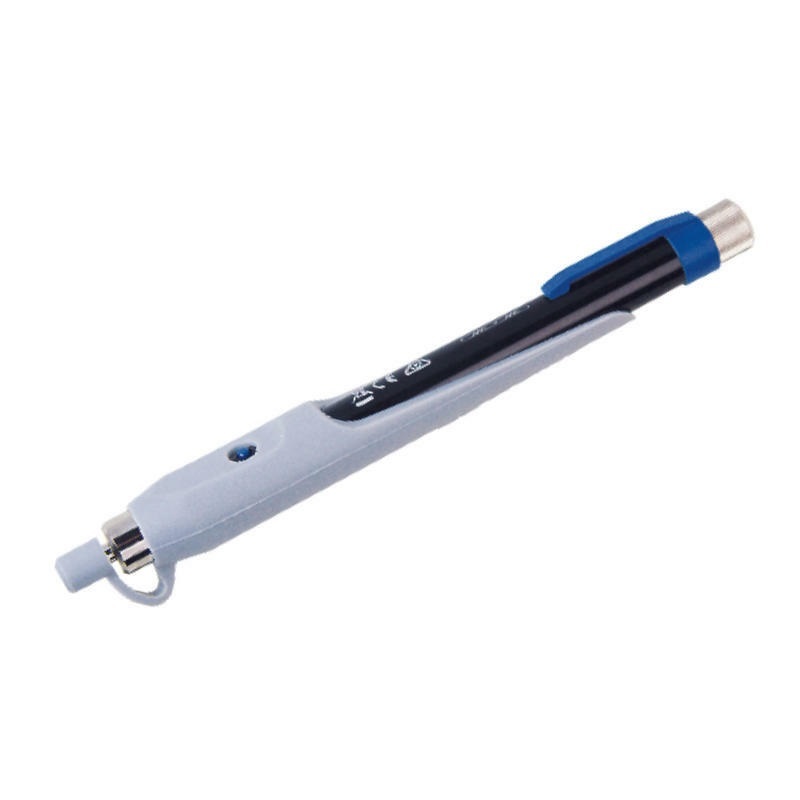

Fiber Visual fault locators (VFL) are used for installation, fault finding, continuity checking, polarity checking, verifying a signal path, and identifying a fiber. For single mode, multimode and plastic fibers. This is a low price 1mW fiber laser.

  • Easy, compact pen-style checker
  • Quality drop-resistant metal & rubber body
  • Class 1 laser needs no safety precautions
  • 2.5 mm universal connector & translucent captive cap
  • Will not turn on by mistake, or roll off a bench
  • Continuous or pulsed operation
  • The smallest pen with 2 x AAA batteries
  • 3 year warranty

More Information

  • Wavelength 655 ± 5 nm
  • Output power2 (typical)
  • 1479 µW / 1.7 dBm @ uncoupled
  • 1259 µW / 1.0 dBm @ 50/125 µm
  • 741 µW / -1.3 dBm @ 9/125 µm
  • Connector 2.5 mm universal
  • Working mode CW & 2-3 Hz modulation
  • Retention force for ferrule 1-2 N
  • Retention force for ferrule 1-2 N
  • Laser protection class Class 1, IEC60825-2011

(KI6358)

SKU KI6358
Model # KI6358
Brand Kingfisher
Shipping Weight 0.0200kg
Shipping Width 0.020m
Shipping Length 0.160m
3 Years Return to Base Warranty
