Can detect objects up to 6.1m deep

Sense and react to ferrous metals only – “iron or steel”

You’re a highly trained, experienced professional but carrying heavy tools is still part of the job. When you have your hands full on the job site, carry the GA-92XTd on your hip or with one hand.

What they find:

  • All Iron and Steel Objects
  • Survey Markers
  • Valve and Curb Boxes
  • Manhole Covers
  • Mag/PK Nails
  • Steel Pipe joints (ductile, cold or black steel pipe)
  • Well Casing
  • Underground Storage Tanks
  • Steel Drums
  • Unexploded Ordnance

What they don’t find:

  • Aluminium
  • Soda Cans / Tops
  • Copper
  • Brass
  • Gold
  • Coins
  • Most Underground Wiring

This is a passive instrument that does not disrupt any utility, communication or electric line while in use.

The Maggie and GA-92XTD models will show you the Magnetic Positive and Negative polarity from the ends of the object which is useful when locating joins in a long Ferrous pipe or conduit. The SPOT model is audio only, no visual screen to show you the magnetic polarity.

Because most industries are looking for such things like survey pins, steel pits, steel pipe joins ETC the Schonstedt locators will only locate what they are looking for because the material is usually a ferrous metal. Therefore, they will not pick up other non-ferrous objects like tin cans etc.

The Radiodetection RD312 Metal Detector will pick up all ferrous and non-ferrous metals but only reach depths down to a maximum of 76cm. For Example, someone who is looking for steel survey markers may end up digging up an aluminium can if they were to use the RD312 over a Schonstedt locator.

(10-GA-92XTD)

Download PDF brochure for Radiodetection (Schonstedt) GA-92XTd Magnetic Locator

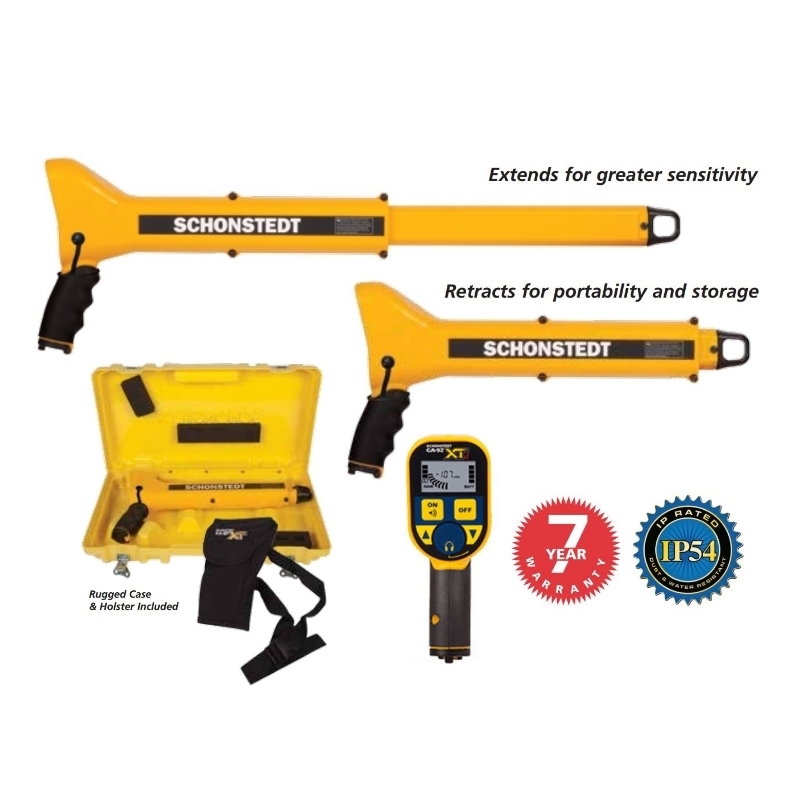

GA-92XTd Standard Features
  • Most portable
  • Smallest for easy storage
  • Membrane Switch for Single-Handed Operation
  • Battery Replacement in grip (does not expose electronics)
  • Audio & Visual Output
  • Battery & Sensitivity Indicators
  • Signal Strength and Polarity Indications
  • No response to aluminum, brass, or copper
  • HeliFlux® sensors
  • Modular construction; high performance components

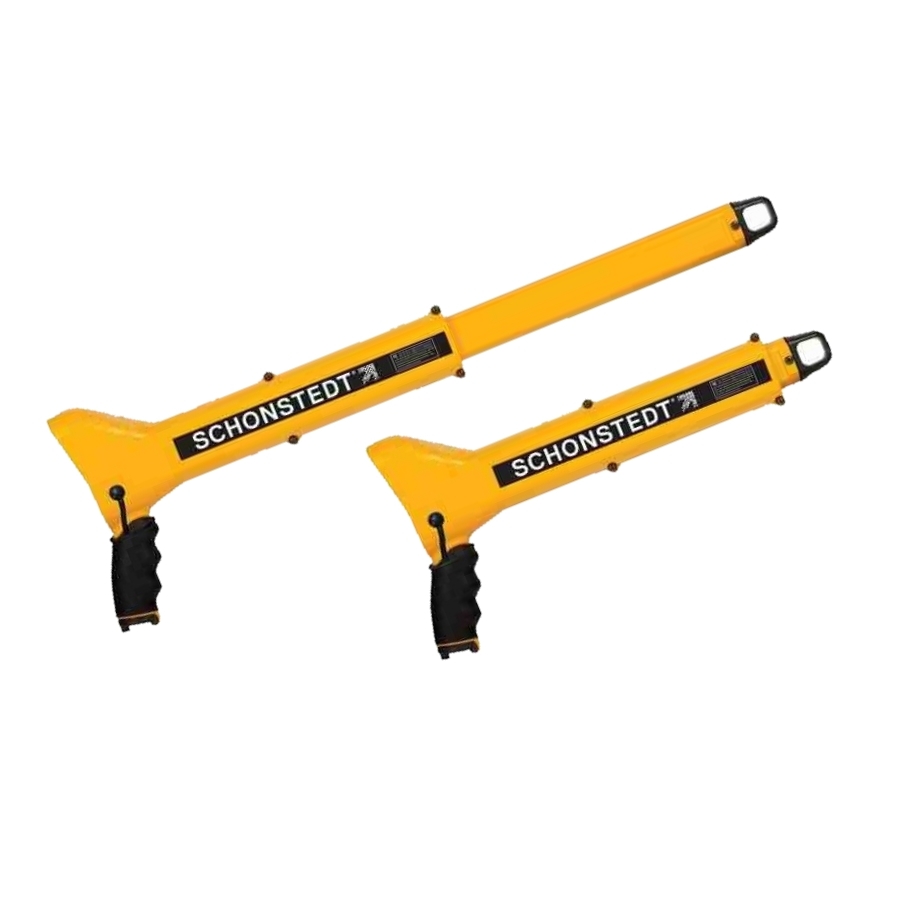

  • Extended mode for great accuracy; retracts for easy carrying and storage
  • Fingertip control of volume and sensitivity
  • Quick change battery compartment
  • 7-year warranty
SKU 10-GA-92XTD
Model # GA-92XTD
Brand Radiodetection
7 Years Return to Base Warranty
