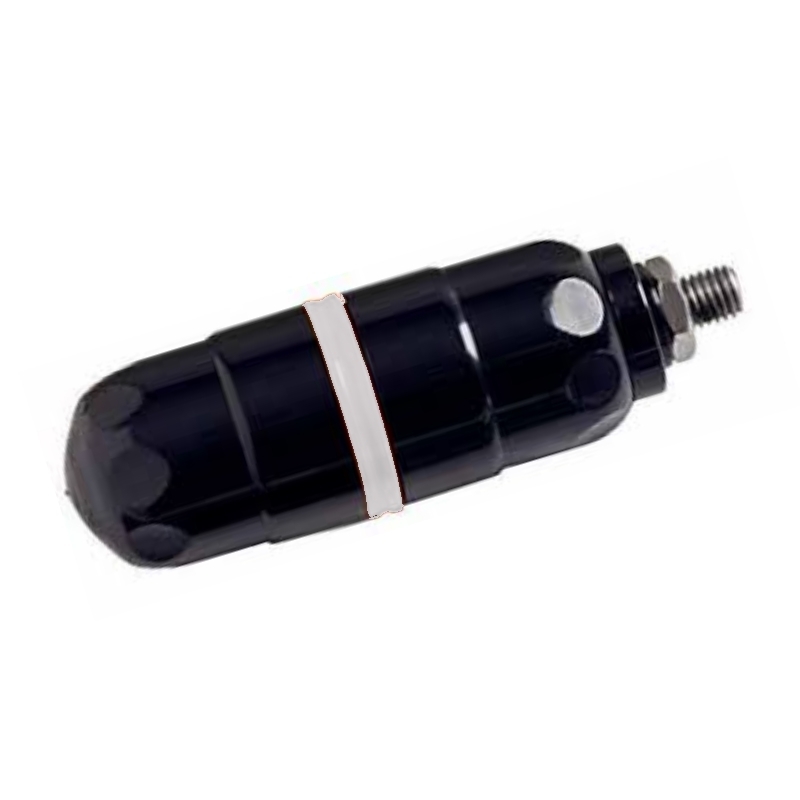

Standard Sonde 8kHz

The standard sonde combines compact size and strong signal. Supplied with M10 male threaded end cap. 8kHz


  • Size: Length 105mm (4.1"), Diameter 39mm (1.5")
  • Location Depth: 5m (16')
  • Battery: 1 x AA providing 8 hours continuous use
  • Signal: 8kHz continuous
  • Pressure: 2 bar – 20m (65') of water

Please Note:

Due to many different cable rodder thread sizes and pitch angles in the market, Radiodetection and TMG do not sell a complete assortment of Sonde-TO-Rod connectors.

TMG does sell

M10 1.5 Thread Pitch TO M6 .75 Thread Pitch Connector


M12 1.75 Tread Pitch TO M10 1.5 Thread Pitch Connector

If these do not suit, you may need to source a connector from somewhere else or have a machinist make one up for you.


  • 190g Weight
  • 1xAA Alkaline Battery
  • 20 Hours Battery Life
  • 5m Location Depth
  • 8kHz


Model # 10/SONDE-STD-8
Brand Radiodetection
12 Months Return to Base Warranty
