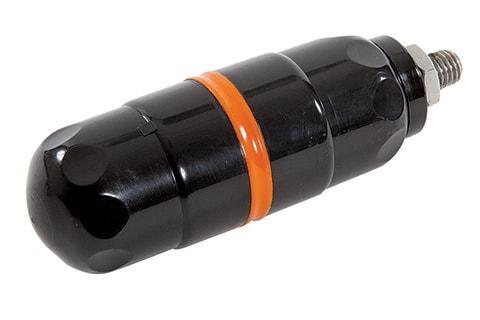

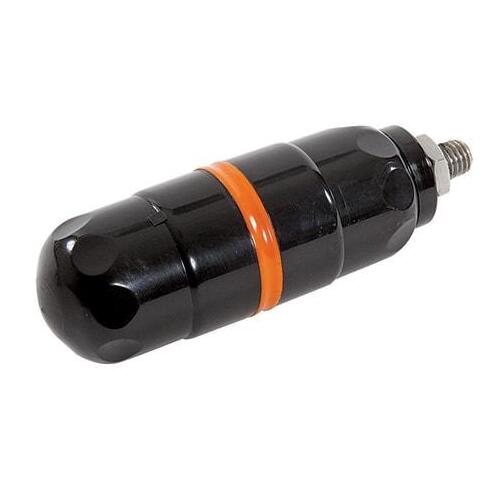

Standard Sonde 512kHz

The standard sonde combines compact size and strong signal. Supplied with M10 male threaded end cap. 512kHz

This 512Hz Standard Sonde is particularly useful for use in cast iron pipes.


  • Size: Length 105mm (4.1"), Diameter 39mm (1.5")
  • Location Depth: 5m (16')
  • Battery: 1 x AA providing 8 hours continuous use
  • Signal: 512kHz continuous
  • Pressure: 2 bar – 20m (65') of water

Please Note:

Due to many different cable rodder thread sizes and pitch angles in the market, Radiodetection and TMG do not sell a complete assortment of Sonde-TO-Rod connectors.

TMG does sell

M10 1.5 Thread Pitch TO M6 .75 Thread Pitch Connector


M12 1.75 Tread Pitch TO M10 1.5 Thread Pitch Connector

If these do not suit, you may need to source a connector from somewhere else or have a machinist make one up for you.


Model # 10/SONDE-STD-512
Brand Radiodetection
12 Months Return to Base Warranty
